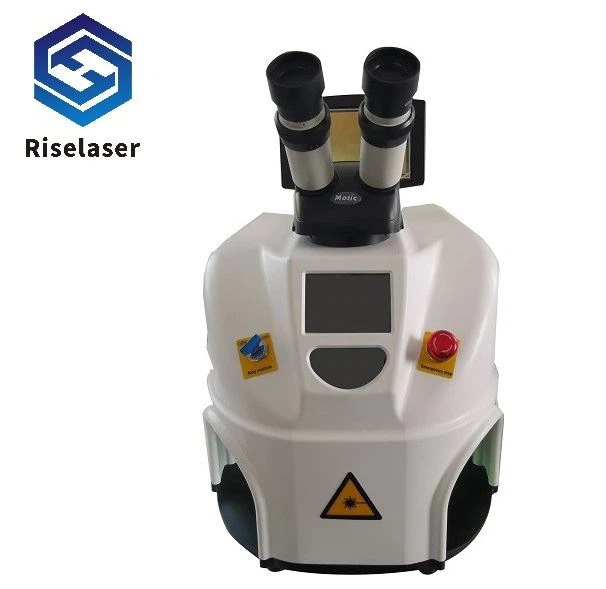

80W Jewelry Laser Soldering Machine Jewellery Restoration
This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface...
Description
Specially designed for the electronics industry and jewelry industry, this series of products with ergonomic design, and the use of international top accessories production, system stability, easy to operate, can be used for gold and silver jewelry electronic components to fill holes, point welding holes.
Jewelry Laser Soldering Machine uses a light energy to weld noble metals to themselves. In other words, the Jewelry Laser Soldering Machine is used to repair jewelry pieces in the jewelry making industry. It is also used for recreating unique jewelries.
The laser has a finely focused laser beam that results in a minimal heat affected zone. During the laser welding process, the metal surrounding the broken parts is not affected or become molten. This precision heat source allows the user to laser weld metals close to heat sensitive stones such as pearls.
There are different jewelry laser soldering machines that suit both small and large jewelry repair needs. In all, Jewelry Laser Soldering Machine is able to give you high quality jewelry repairs.
SPECIFICATIONS of JEWELRY LASER WELDING MACHINE
| Model | RL-Y80 |
| Laser output power | 80W |
| Laser type | YAG pulse |
| Laser wavelength | 1064um |
| Pulse width | 0.1ms-20ms |
| Pulse energy | 50J |
| Pulse frequency | 0-50Hz |
| Size of welding spot | 0.2mm-2.0mm |
| Adjusting range of light spot | 1.8mm |
| Max. bearing of work bench | 25KG |
| Repeating precision of work bench | -0.001 |
| Positioning precision of work bench | -0.001 |
| Sighting positioning system | HD-CCD monitor system |
| Cooling method | Water cooling |
| Max. output power | 250W |
| Integrity power | 5KW |
| Power supply | AC220VAC/380VAC+-15%/50HZ/25A |
| Guarantee | 1 year |
Applicable & Samples
Jewelry: repair and design of rings, earrings, necklaces, bracelets;
Repair of glasses, watches, small electronic devices.
Material: Suitable for various metals and alloys such as gold, silver, copper, platinum and titanium.
Certificates
Pacakging
FAQ
1.Q:What is the warranty of the suitcase laser rust removal machine?
A:1 year.
2.Q:How about the quality?
A:This laser cleaning technology is from Germany.High quality, best price.
3.Q:How do i get technical support after purchasing?
A:Riselaser offer online service in English through Skype,WhatsApp,Wechat or Email etc. If need remote operation,we can use TeamViewer software.
Hot Tags: 80w jewelry laser soldering machine jewellery restoration, China, manufacturers, customized, wholesale, price, hot sale
